RF200 Self-cleaning Filters
RF200 Self-cleaning Filters. RF200 self-cleaning filters provide effective screening for surface mounted pump intakes. The RF200 pump suction hose filters can screen from 50 microns - 6 mm, handling up to 220 litres a minute, 58 US GPM. A continuous backwash keeps the intake screen clear.
Key Features
RF200 Self-cleaning Filters
Specifications & Dimensions
Specification

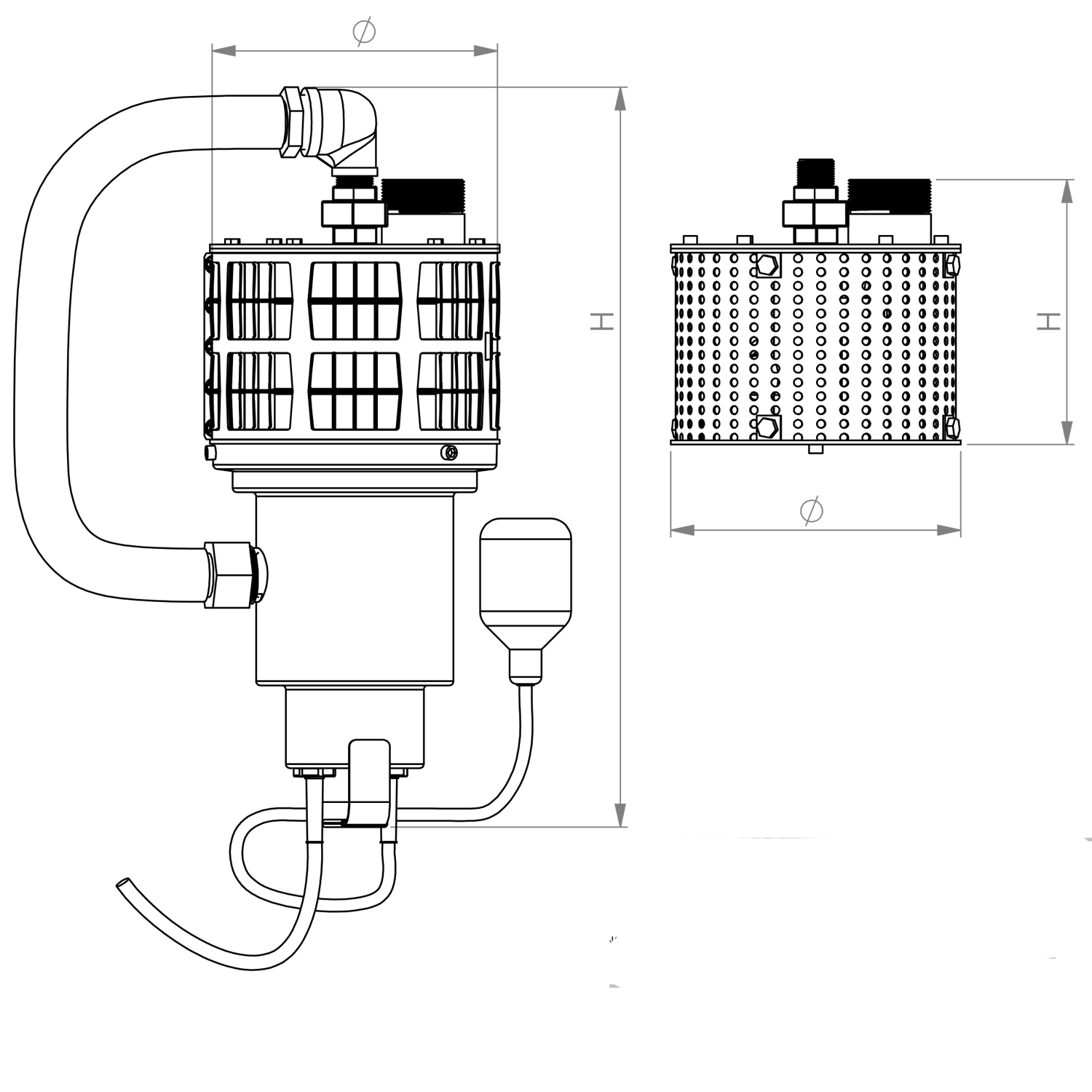

Dimensions
Prices & ordering
- All Models
- Standard
- With Integral Backwash Pump
Similar Products
Omnia Filterpumps™
Rotorflush Omnia Filterpumps™. Submersible pumps with built-in pump suction self-cleaning filters. Single phase low head filter pumps - up to 220 litres a minute, 70 US GPM. Ideal for sampling and small open loop heat pump systems.
- Maximum Output 220 L/ Min, 45 US GPM
- Maximum Head 11 m, 25 ft
Price from: £2,260
RF100 Self-cleaning Filters
RF100 Range Self-cleaning Filters. RF100 self-cleaning filters are designed to protect dry mounted pumps and other equipment from blocking while water is being pumped. They are pump suction hose filters available with 1, 2, or 3 filter heads, for a range of flow rates up to 90 litres a minute, 24 US GPM. They can be fitted with 60, 115 or 250 micron mesh, US Mesh 230, 120 and 60.
- Filter 30 – 90 L/Min, 8 – 24 US GPM
- Screen 60, 115 or 250 Microns
- US Mesh 230, 120 and 60
Price from: £300
RF300 Self-cleaning Filters
RF300 self-cleaning filters. RF300 self-cleaning filters provide effective screening for surface mounted pump intakes. The RF200 pump suction hose filters can screen from 50 microns - 6 mm, handling up to 560 litres a minute, 148 US GPM. A continuous backwash keeps the intake screen clear.
- Screen Up to 560 L/Min, 148 US GPM
- Filter From 3 mm Down to 50 Microns
- Down to 230 US Mesh
Price from: £2,760
General Information About RF200 Self-cleaning Filters
RF200 filters are general purpose suction intake filters with a built-in self-cleaning filter mechanism that back-washes the intake mesh as your pump draws water. They are designed for use with a surface mounted pump connecting to the pump suction hose. A portion of the pump output can be used to supply the backwash to the screen. Alternatively, RF200 filters can be made with a built-in submersible pump to provide a dedicated backwash to the mesh separately from your main pump.
Dirty water is screened at source, helping to prevent the intake, pump and any connected equipment from blocking. These smaller capacity self-cleaning intakes are ideal for domestic and light industrial applications.
Here are some typical uses of these filters:
- Irrigation
- Protecting nano-bubble equipment
- Filtration for garden ponds and small water features
- Screening industrial process water

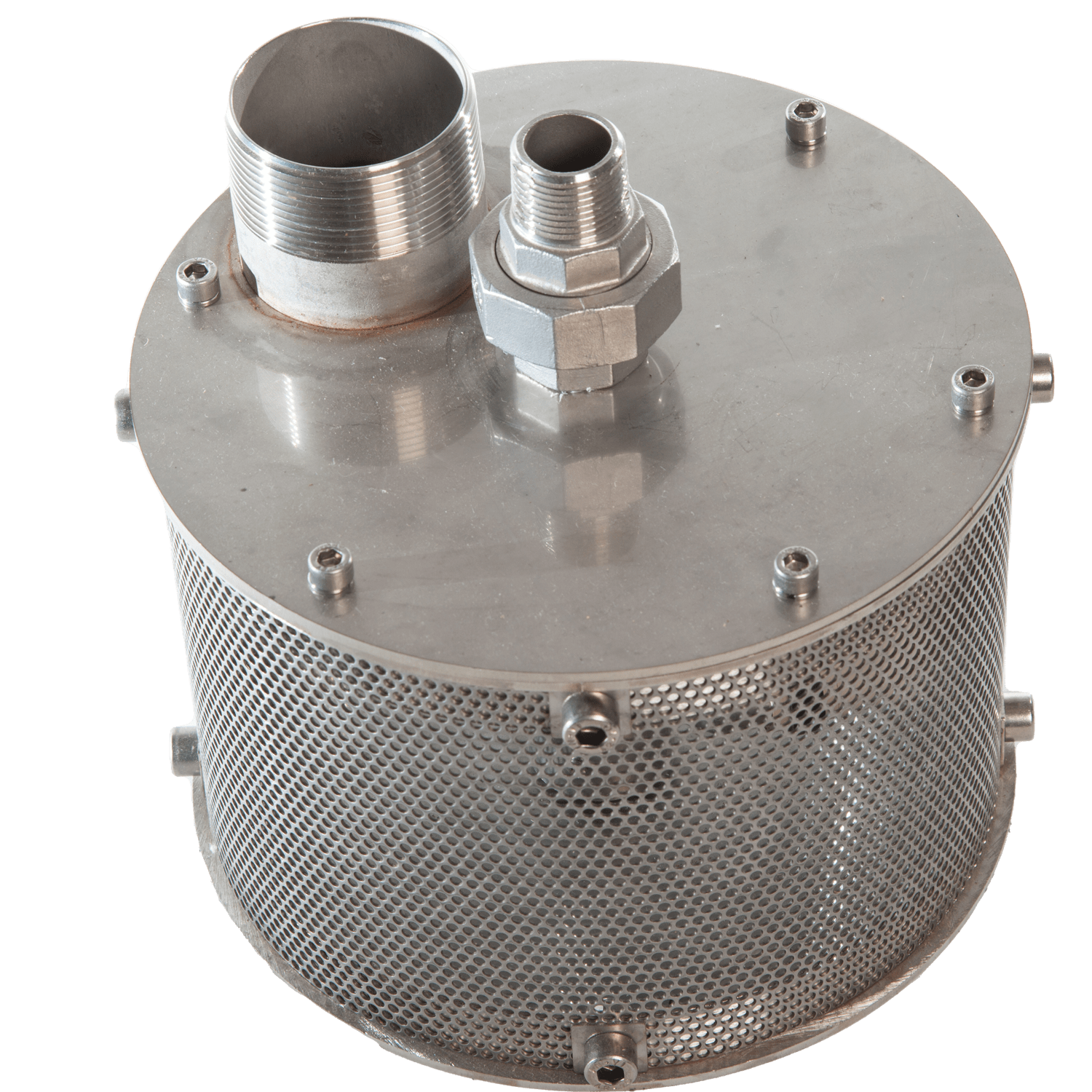

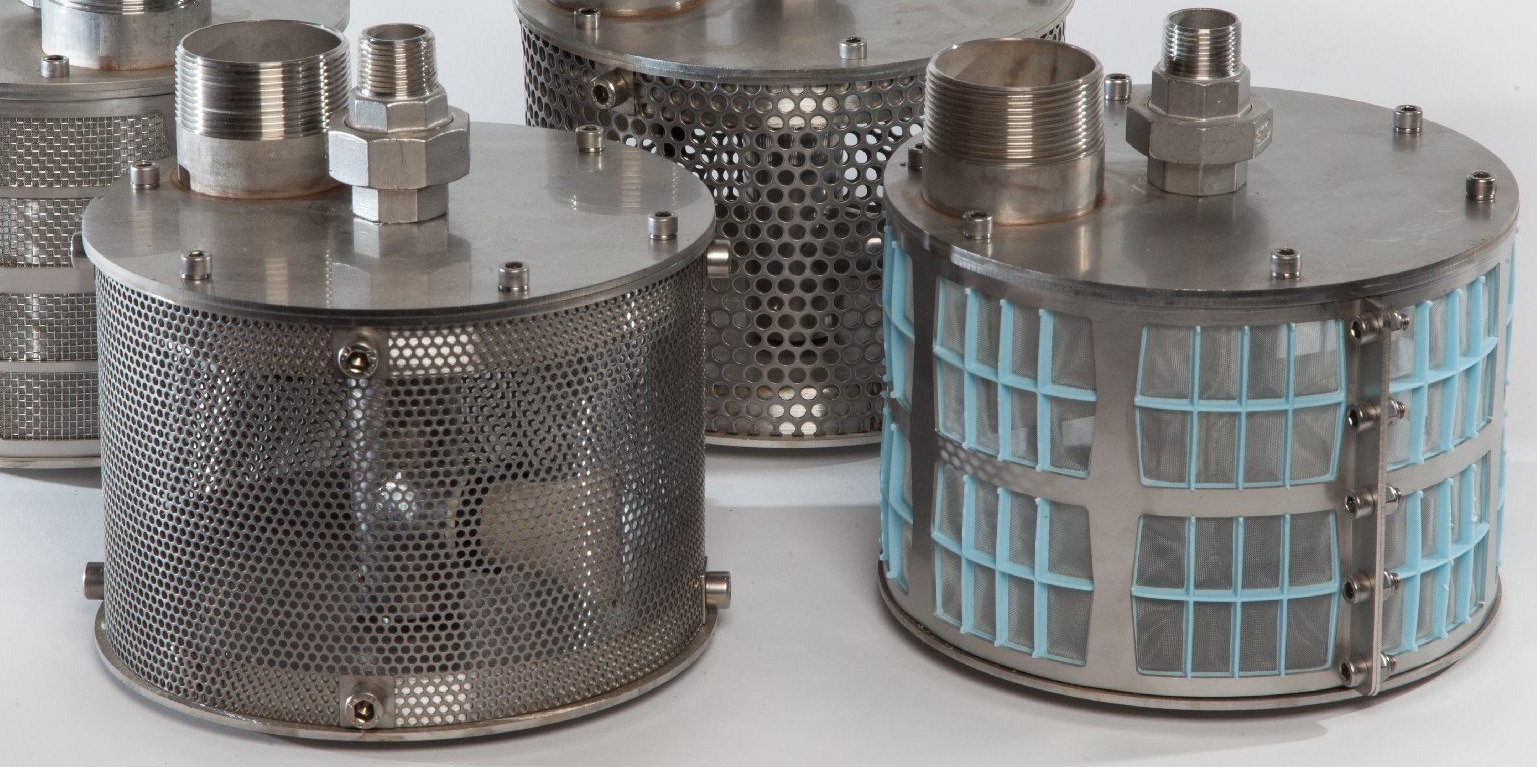

Standard RF200R self-cleaning suction intake screens fitted with various meshes

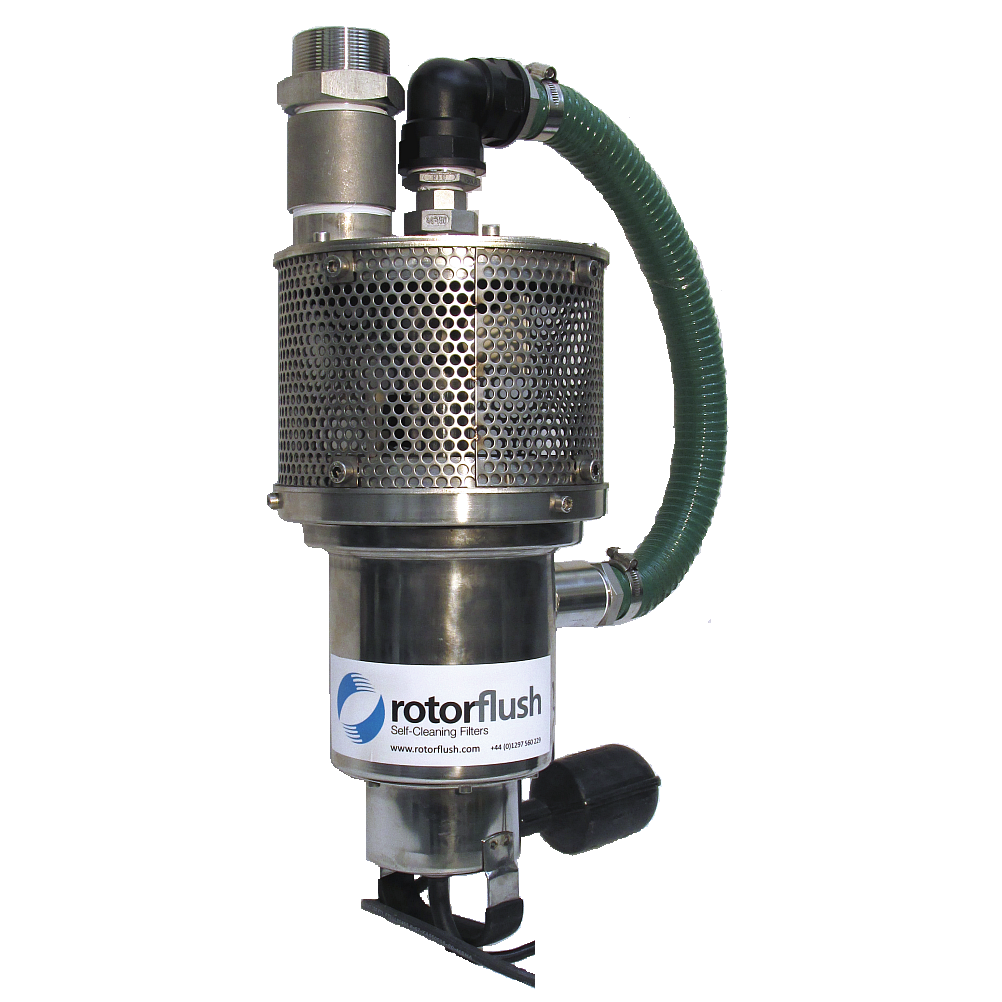

RF200R-E self-cleaning suction intake screen with built in backwash pump and perforated steel mesh
Rotorflush RF200 self-cleaning suction intakes can be fitted with:
Nylon Mesh inserts
The filter mesh is made up of replaceable bias-cut nylon mesh offering a very clean filtration, ideal for sampling. The inserts are inexpensive and easy to replace.
Available in 60 micron, 115 micron or 300 micron.
316 Sintered Stainless Steel Mesh
A robust 2 layer sintered steel screen that can be easily cleaned with a pressure washer. Ideal for screening water for heat pumps and other application with small tolerances.
Available in 50 micron, 100 micron and 315 micron.
316 stainless Woven Mesh
A coarse screen providing ultra-low maintenance cycles, filters and screens with coarse mesh come fitted with rubber backwash jets which are suitable for handling larger particles. Ideal difficult water conditions.
Mesh apertures available: 1 mm, 2 mm and 3 mm

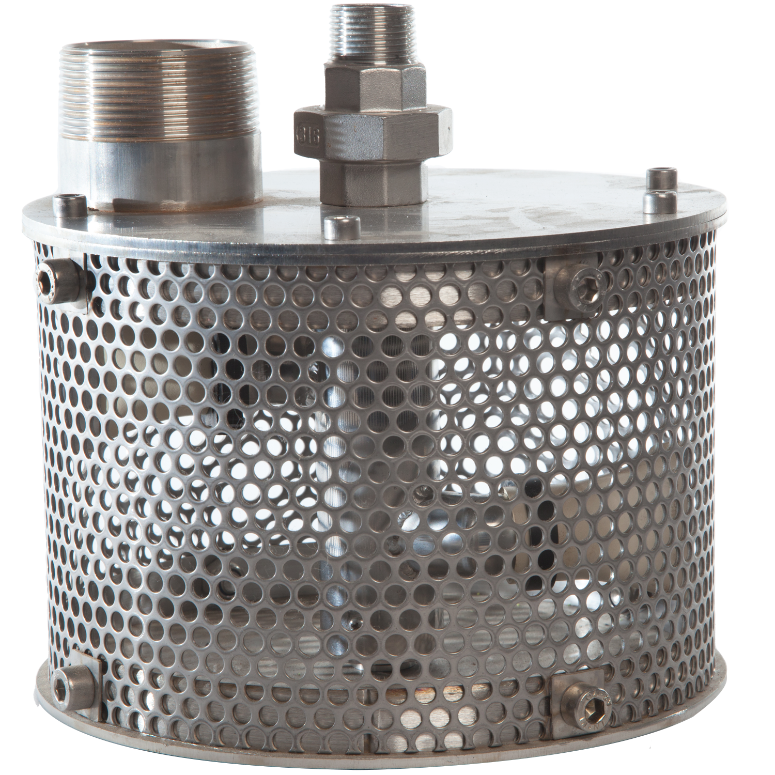

Perforated 316 Stainless Steel Mesh
A coarse screen providing ultra-low maintenance cycles, filters and strainers with coarse mesh come fitted with rubber backwash jets which are suitable for handling larger particles. Perforated mesh strainers are used where water is very dirty and screening needs to remove larger debris and particulate.
Mesh apertures available: 3 mm, 6 mm and 10 mm
Due to their small size (200 mm diameter), RF200s can be installed in a number of ways.
The key thing to remember is to make sure that they have a lot of clear space around the mesh for the backwashed debris to be dispersed into, and that they are not sited in any silt or sludge build up below the filter.
RF200s can be suspended or attached to a float. We also manufacture stands and guide rails to help site our products.

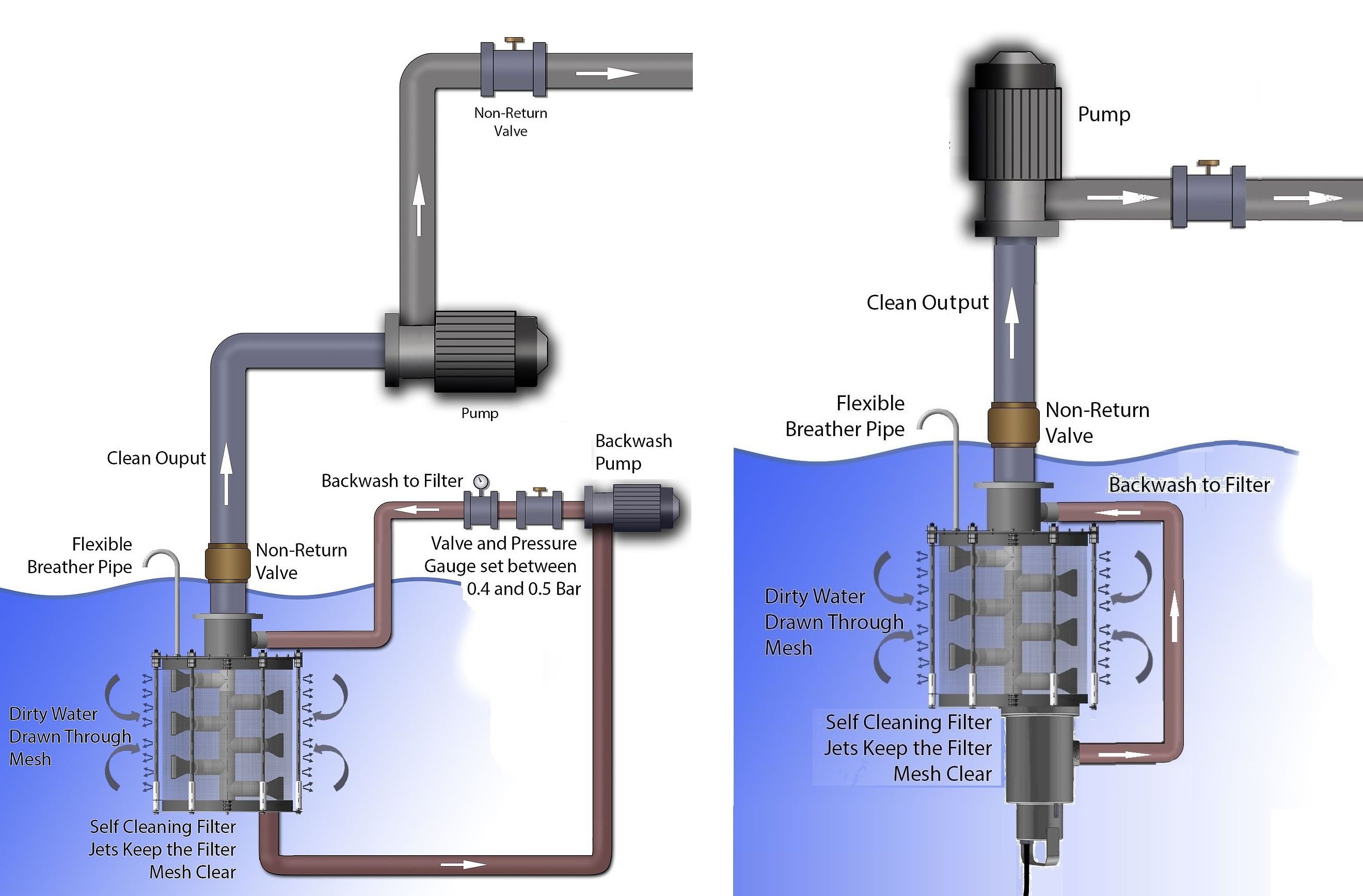

Set-up using filter with separate dry backwash pump.................................Set-up using filter with built-in submersible backwash pump
Although they are self-cleaning all of our products will require a manual clean every once in a while.
The nylon mesh inserts are easily replaced, and stainless mesh can be cleaned with a pressure washer. How often depends on your mesh size and what you are filtering.
As a minimum we recommend the following:
- Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
- Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use
- Coarse mesh that is 1 mm or bigger should be inspected and cleaned every 6 - 12 months
Full maintenance guidelines can be found in the instruction manual available from the download link above.
All our products are guaranteed for a year. Full details in our Terms and Conditions below.
