Omnia Filterpumps™

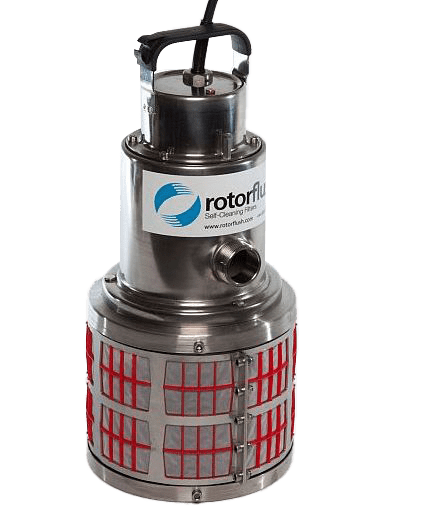

The Omnia is one of our smallest filter pumps and is suitable for applications that require a low flow and low pressure. Ideal for sampling and for domestic open loop heat pump systems, the built-in self-cleaning filter on the suction intake protects connected equipment (online analysers, heat exchangers etc from blocking if there is debris or weed in the water.

Here are some of the uses we have sold Omnias for:

• Eel passes
• Domestic Heat pumps
• Analyser Sampling

Omnia Filterpumps™ can be fitted with:

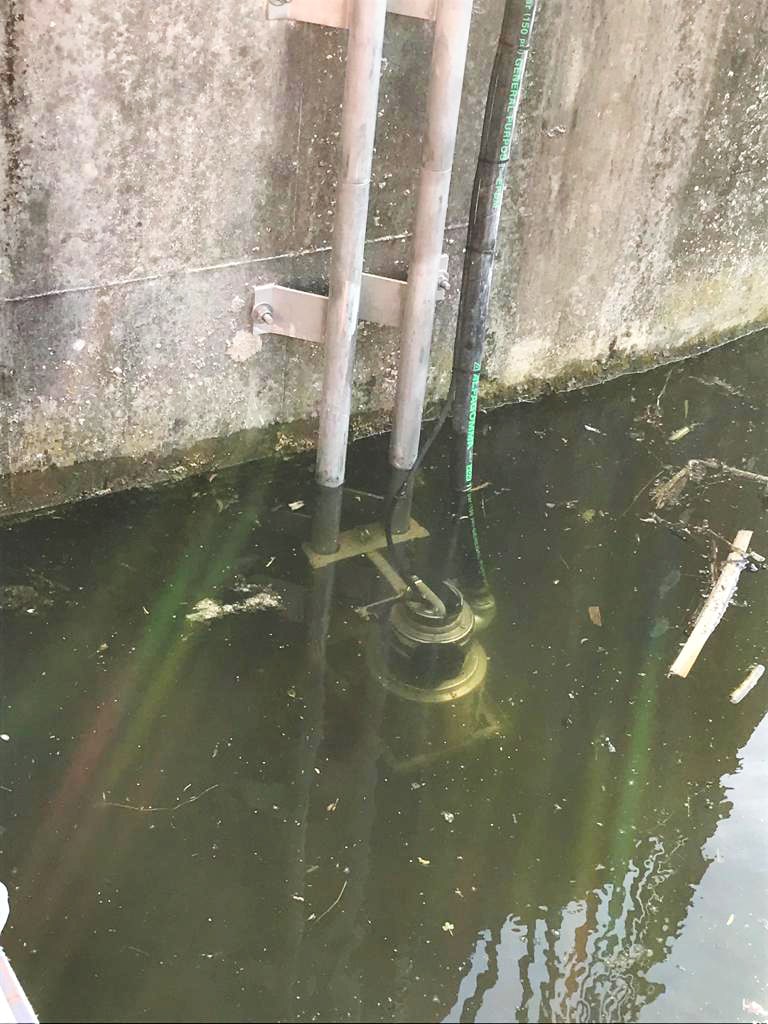

Due to their small size, Omnias can be installed in a number of ways.

The key thing to remember is to make sure that they have a lot of clear space around the mesh for the backwashed debris to be dispersed into and that they are not sat in a silt or sludge build up.

We also manufacture stands and guide rails to help site your Omnia.

Although they are self-cleaning all of our products will require a manual clean every once in a while.

The nylon mesh inserts are easily replaced and stainless mesh can be cleaned with a pressure washer. How often depends on your mesh size and what you are filtering.

As a minimum we recommend the following:

• Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
• Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use
• Coarse mesh that is 1 mm or bigger should be inspected and cleaned every 6 - 12 months

Full maintenance guidelines can be found in the instruction manual available from the download link above.

All our products are guaranteed for a year. Full details can be found in our Terms and Conditions.
