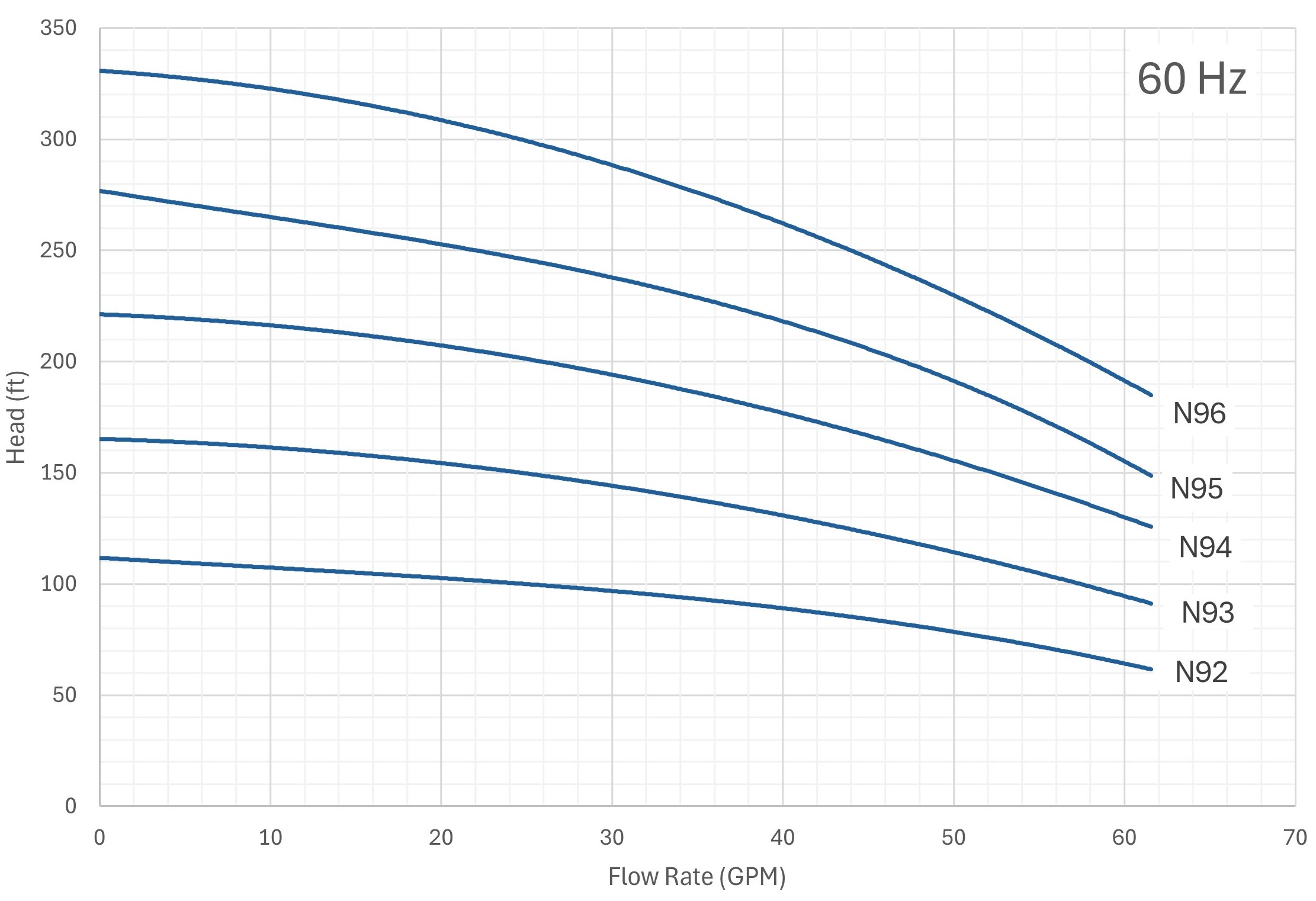

Nauti N9 60 hz performace curves

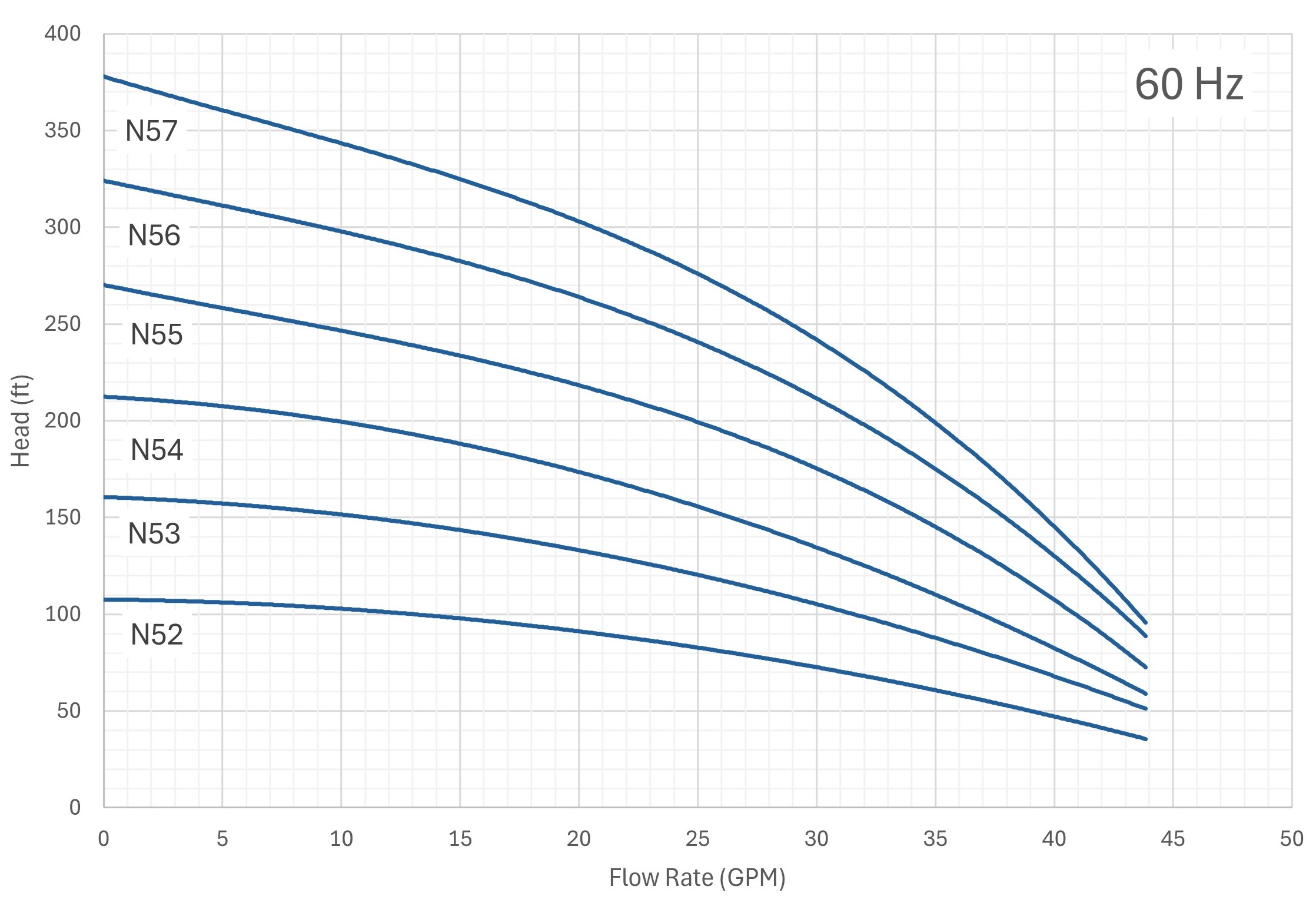

Nauti N5 60 hz performace curves

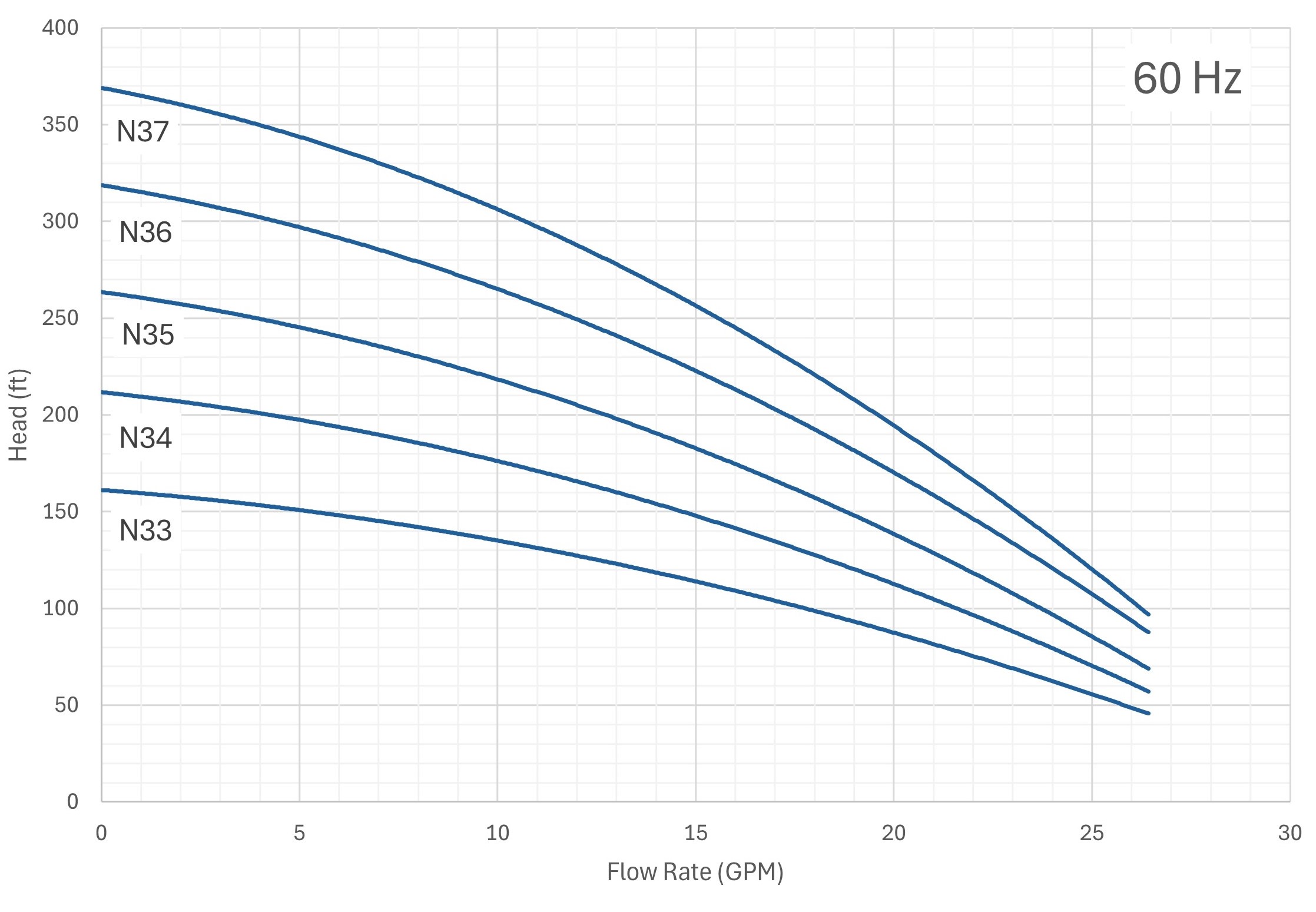

Nauti N3 60 hz performace curves
Nauti Filterpump
Nauti N9 60 hz performace curves
Nauti N5 60 hz performace curves
Nauti N3 60 hz performace curves

Nauti 60Hz Filterpumps™

Rotorflush Nauti Filterpumps™. Now available in 60 Hz supple High-head submersible filter pumps with built-in self-cleaning filters on the suction intake. They have a maximum output of 60 USGPM, and can pump up to 375 ft. Pumping and filtration are combined. All stainless steel construction.

Key Features

  • Multi-stage Pump With Self-cleaning Intake
  • Screens Suspended Solids Down to 50 Microns
  • Maximum Flow Rate 60 USGPM
  • Maximum Head 377 ft

Configure your product

Your price from:
Enquire Now

Nauti 60Hz Filterpumps™

  • Specifications
  • Prices & ordering
  • Downloads
Enquire

Specifications & Dimensions

Select model
To view accurate specification and dimension details

Specification

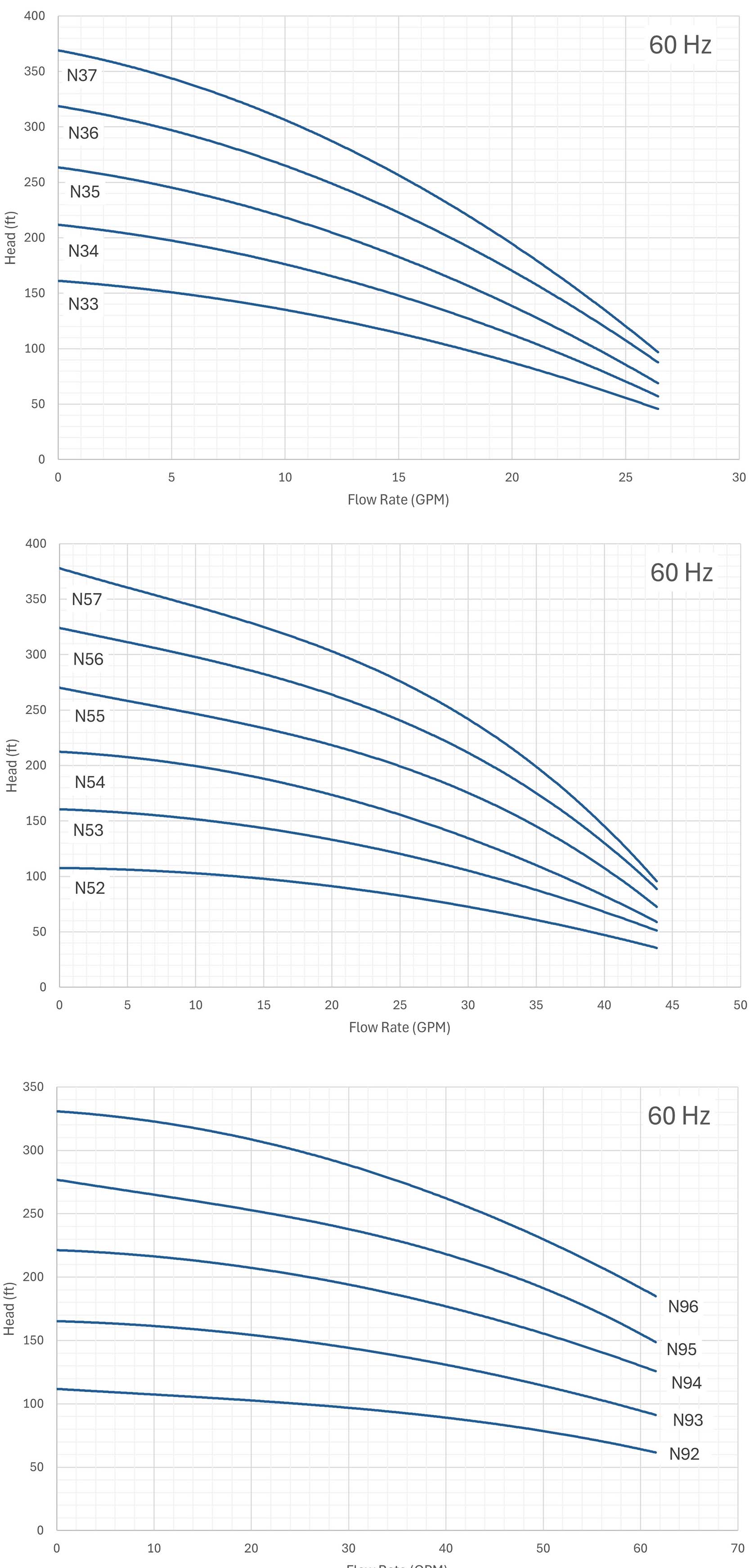

Nauti 60hz performance curves
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1.5 HP
Outlet
1.25"
Flow Rate Max
60 USGPM
Head Max
111 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
2 HP
Outlet
1.25"
Flow Rate Max
60 USGPM
Head Max
167 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 3ph
380 V
Power
3 HP
Outlet
1.25"
Flow Rate Max
60 USGPM
Head Max
223 ft
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 3ph
380 V
Power
4 HP
Outlet
1.25"
Flow Rate Max
60 USGPM
Head Max
275 ft
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 3ph
380 V
Power
5 HP
Outlet
1.25"
Flow Rate Max
60 USGPM
Head Max
333 ft
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Power
1 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
110 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1.2 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
164 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1.5 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
216 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
2 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
270 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 3ph
380 V
Power
3 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
325 ft
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 3ph
380 V
Power
3 HP
Outlet
1.25"
Flow Rate Max
44 USGPM
Head Max
377 ft
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1 HP
Outlet
1.25"
Flow Rate Max
26 USGPM
Head Max
160 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1.2 HP
Outlet
1.25"
Flow Rate Max
26 USGPM
Head Max
211 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
1.5 HP
Outlet
1.25"
Flow Rate Max
26 USGPM
Head Max
263 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
2 HP
Outlet
1.25"
Flow Rate Max
26 USGPM
Head Max
318 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron
Voltage 1ph
220 V
Voltage 3ph
380 V
Power
2 HP
Outlet
1.25"
Flow Rate Max
26 USGPM
Head Max
367 ft
Float Switch (Single phase only)
Optional
Mesh Apertures Sintered Stainless
60, 115 or 300 micron
Mesh Apertures Nylon Inserts
50, 100 or 315 micron

Dimensions

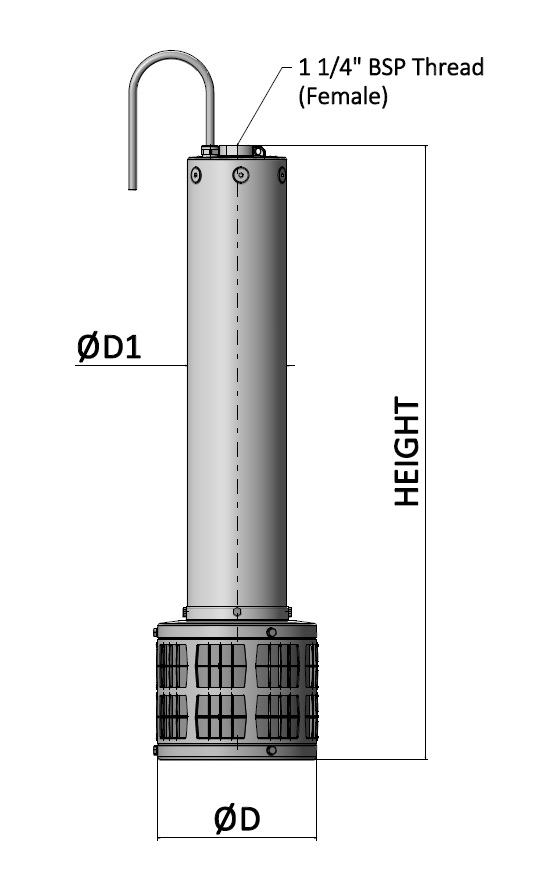

Nauti filterpump™ dimensions diagram
Height
635 mm
Overall Diameter
220 mm
Weight 1ph
20.25 kg
Weight 3ph
19 kg
Height
665 mm
Overall Diameter
220 mm
Weight 1ph
23.5 kg
Weight 3ph
21.25 kg
Height
745 mm
Overall Diameter
220 mm
Weight 3ph
24 kg
Height
775 mm
Overall Diameter
220 mm
Weight 3ph
25.5 kg
Height
805 mm
Overall Diameter
220 mm
Weight 3ph
27 kg
Height
595 mm
Overall Diameter
220 mm
Weight 1ph
18.75 kg
Height
620 mm
Overall Diameter
220 mm
Weight 1ph
19.25 kg
Weight 3ph
19.25 kg
Height
640 mm
Overall Diameter
220 mm
Weight 1ph
21 kg
Weight 3ph
19.75 kg
Height
715 mm
Overall Diameter
220 mm
Weight 1ph
24 kg
Weight 3ph
22 kg
Height
740 mm
Overall Diameter
220 mm
Weight 3ph
24.25 kg
Height
765 mm
Overall Diameter
220 mm
Weight 3ph
25 kg
Height
620 mm
Overall Diameter
220 mm
Weight 1ph
19.25 kg
Weight 3ph
19.5 kg
Height
640 mm
Overall Diameter
220 mm
Weight 1ph
19.75 kg
Weight 3ph
19.75 kg
Height
670 mm
Overall Diameter
220 mm
Weight 1ph
21.5 kg
Weight 3ph
20.25 kg
Height
740 mm
Overall Diameter
220 mm
Weight 1ph
24 kg
Weight 3ph
22 kg
Height
765 mm
Overall Diameter
220 mm
Weight 1ph
24.75 kg
Weight 3ph
22.75 kg

Prices & ordering

  • All Models
  • N92
  • N93
  • N94
  • N95
  • N96
  • N52
  • N53
  • N54
  • N55
  • N56
  • N57
  • N33
  • N34
  • N35
  • N36
  • N37
Model No. Single Phase 220 V Manual Single Phase 220 V Automatic Three Phase 380 V Manual
N92
N93
N94
N95
N96
N52
N53
N54
N55
N56
N57
N33
N34
N35
N36
N37

General Information About Nauti Filterpumps™

Nauti submersible filter pumps are high pressure centrifugal submersible pumps with a built-in self-cleaning filter in their intake. They can screen dirty water as they pump - the self-cleaning intake protects against blocking.

Nauti Filterpumps™ are high head, multistage pumps, ideal for industrial applications requiring up to 60 USGPM.

Here are some typical uses of Nauti Filterpumps™:

  • Wash water for trash screens
  • Dirty water systems on dairy farms
  • Irrigation
  • Screening process water for re-use
Nauti Filterpump™

Nauti Filterpumps™ can be fitted with:

Nylon Mesh inserts

The filter mesh is made up of replaceable bias-cut nylon mesh offering a very clean filtration, ideal for sampling. The inserts are inexpensive and easy to replace.

Available in 60 micron, 115 micron or 300 micron.

316 stainless Sintered Mesh

A robust screen that can be easily cleaned with a pressure washer. Ideal for heat pumps and other application with small tolerances.

Available in 50 micron, 100 micron and 315 micron.

Nauti Filterpumps™ are ideal for screening and pumping raw water for irrigation and industry, final effluent for sewage treatment works wash and for screening industrial process water.  For best performance, make sure that there is good clearance around the filter pump mesh so that back-washed debris can disperse, and that the filter pump is above any silt or sludge that may accumulate.

The smallest Nautis weigh in at 20 kgs, the largest at 28 kgs. Nauti filterpumps™ can be suspended in tanks, sumps or ponds. They can be suspended from floats or buoys, or raised and lowered on a guide-rail system.

Rotorflush Filters Ltd are happy to advise and comment on siting and installation.

Although they are self-cleaning all of our products will require a manual clean every once in a while.

The nylon mesh inserts are easily replaced and stainless mesh can be cleaned with a pressure washer.

How often will depend on your mesh size and what you are filtering.

As a minimum we recommend the following:

  • Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
  • Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use

Full maintenance guidelines can be found in the instruction manual available from the download link above.

All our products are guaranteed for a year. However, as a condition of our guarantee, and to protect against dry-running, we recommend the use of a starter panel or control panel capable of cos phi load monitoring when running Nauti filter pumps.

Full details in our Terms and Conditions.

What is the difference between a Rotorflush Filterpump™ and a filter pump?

A filter pump is a pump with a filter on the intake; a Rotorflush Filterpump™  is our unique, award-winning submersible pump with a built-in self-cleaning filter on the pump intake that keeps the intake filter clear and protects the pump from blocking and clogging.

See more Rotorflush Filterpumps™
Submersible pumps with self-cleaning filters built-in

Why Rotorflush?

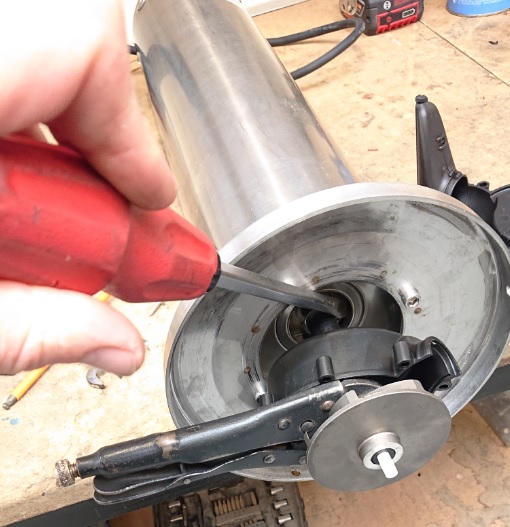

Nauti high pressure self-cleaning filter pump being assembled

Designed & Manufactured in the UK

All our products are built to order and can be made to customer specifications.

  • Built to suit your requirements
  • Pump and Filter down to 50 microns
  • Hand built in the UK
Irrigator not blocking

Experts in Water Screening and Filtration

Our products and expertise have been appreciated by satisfied customers for over 2 decades.

  • Industry experts for over 20 years
  • 1000's of products in use worldwide
  • Successfully screening 10 - 7,225 US GPM / 2 - 1,640 m3 hr
  • Our products keep water flowing by protecting pumps, screens, spray bars…….
  • .…nozzles, heat exchangers and other connected equipment from blocking
Dirty Water Irrigation - Nauti filterpump™ is ideal

Worldwide Delivery and Service

Through our worldwide distribution network, we offer the ability to:

  • Deliver filter pumps worldwide
  • Help service your filter pump
  • Repair a broken filter pump (whatever you've done to it…)

WhatSpeak to One Our Knowledgeable Staff

Call us now on 01297 560 229 | 8am - 5pm UK time

Or leave us a message and a member of our expert, friendly team will call you back and will find the filter pump for your needs.

  •     We work with you to identify your issues
  •     We can design & build a custom solution
  •     We can deliver our solution worldwide
We'll help you find the right Idrogo for you...
We'll help you find the right Idrogo for you...

OR Call us on: 01297 560229

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

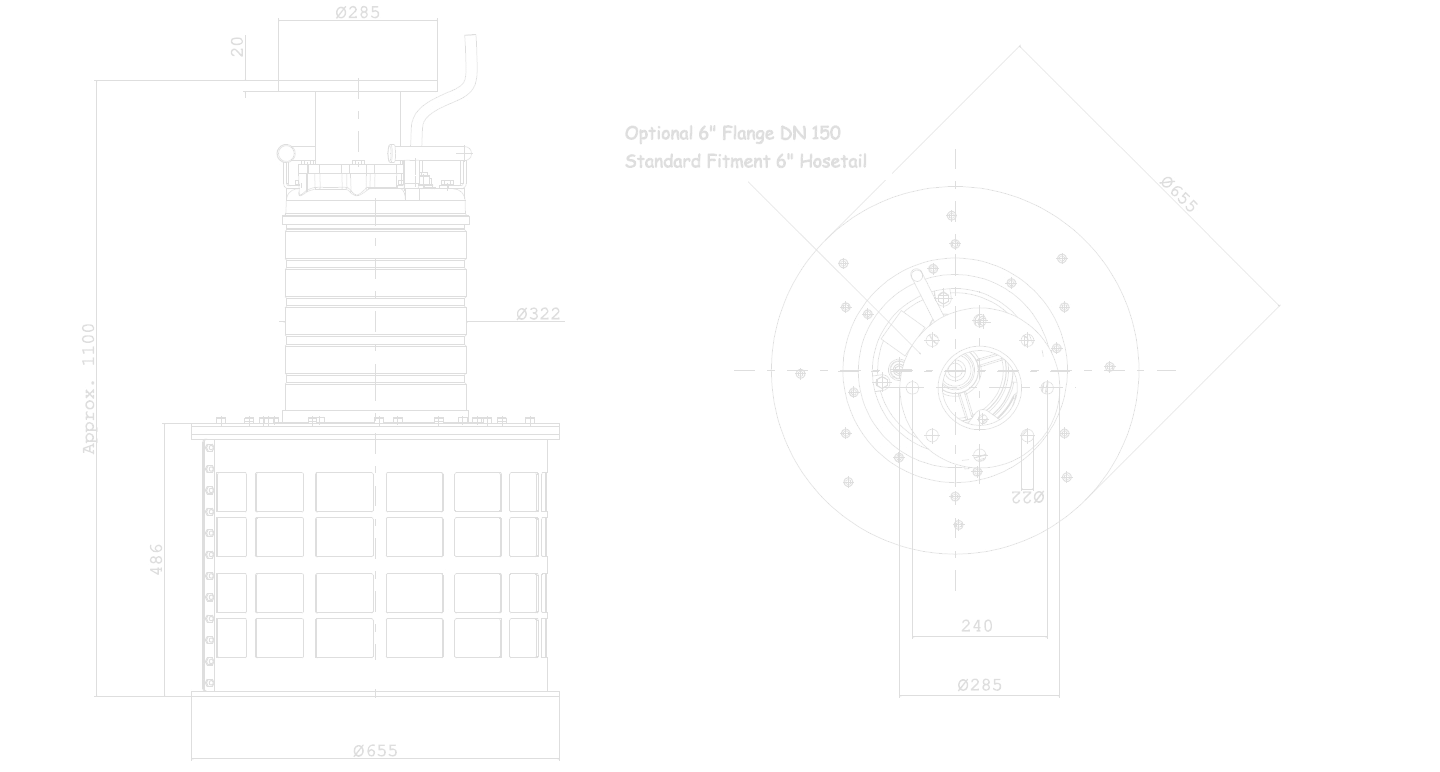

CAD Drawing of a filter pump
