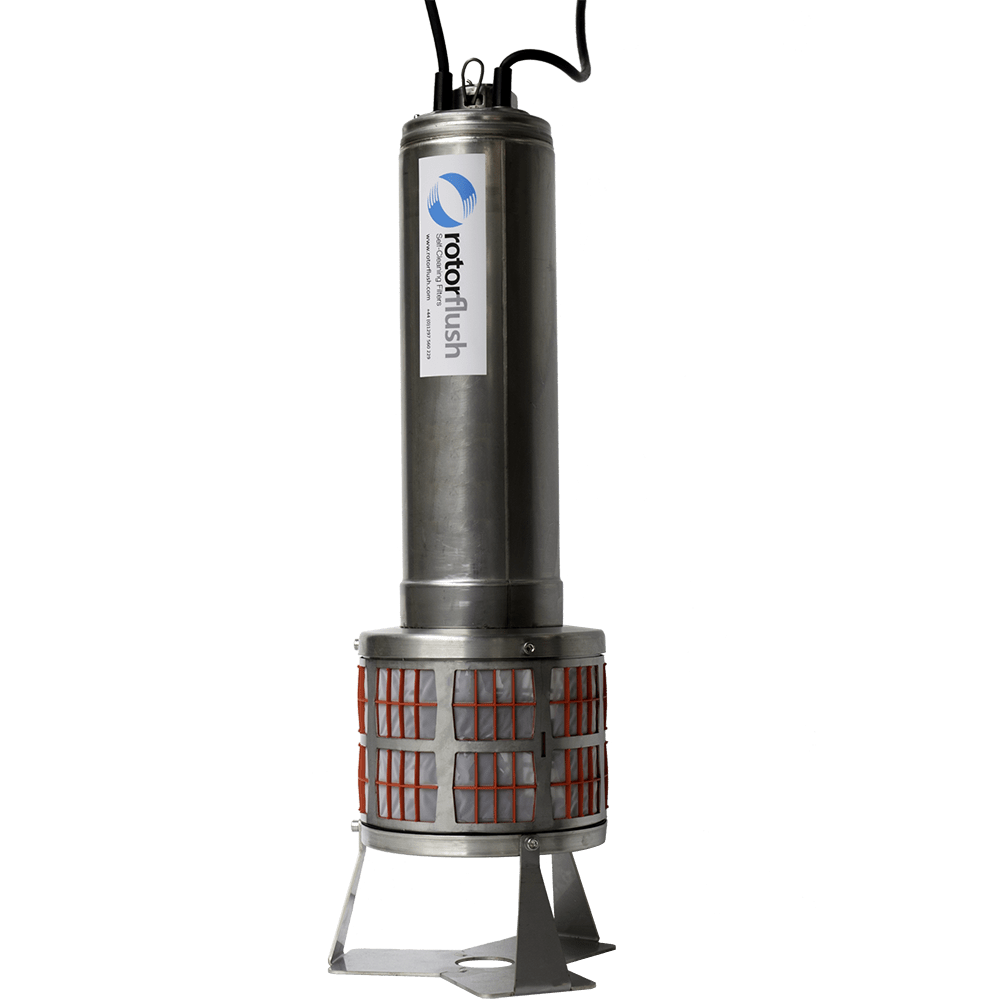

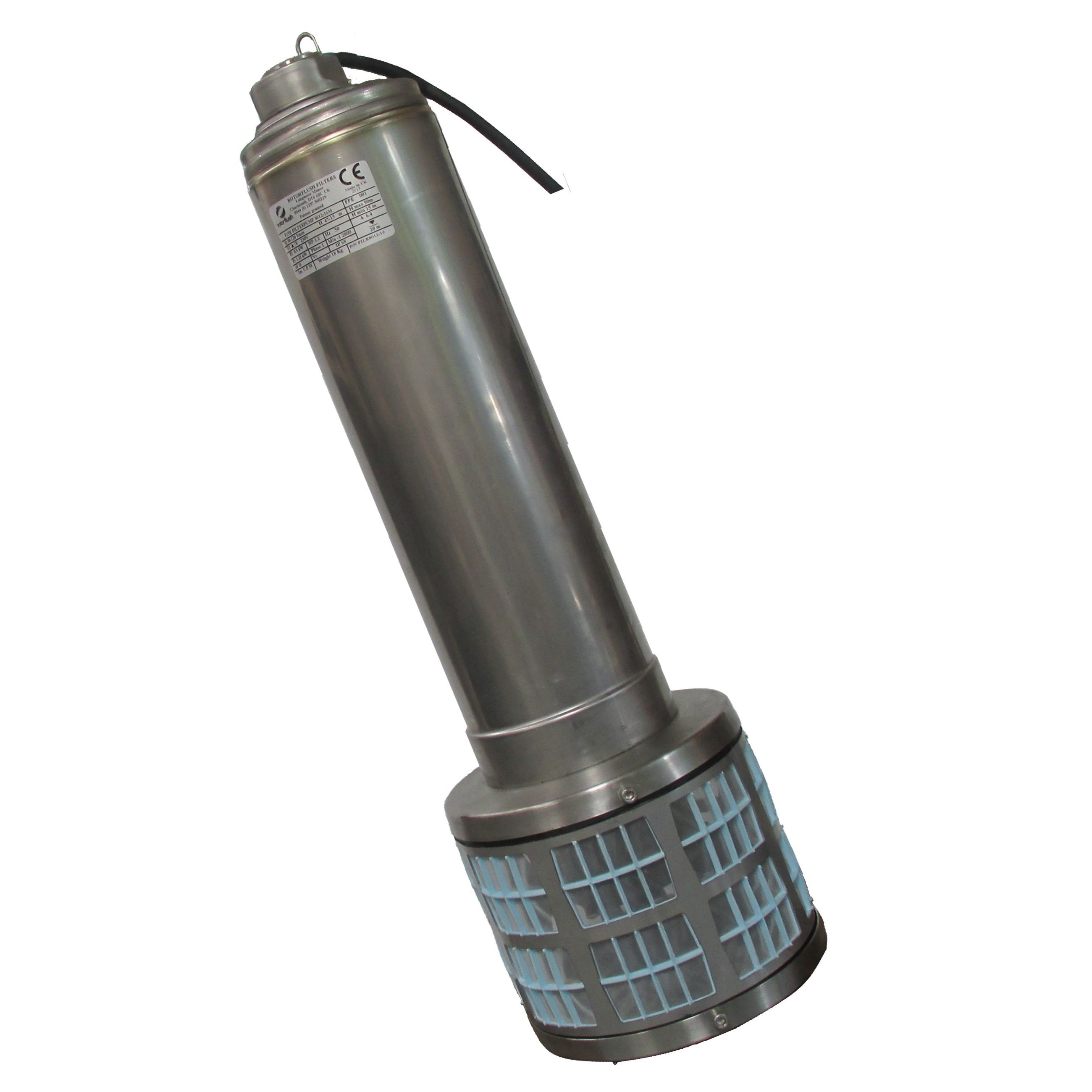

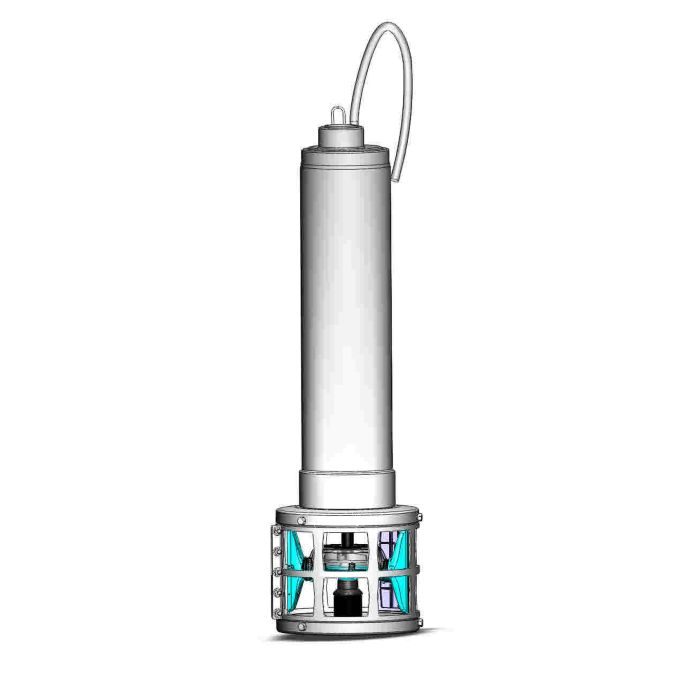

Rotorflush Idrogo Filterpumps™. Medium-head submersible filter pumps with built-in self-cleaning filter on their intake. Stainless steel bodied pumps, ideal for domestic and small scale industrial use, delivering up to 120 litres per minute, maximum head 80 metres.
Key Features
Idrogo Filterpumps™
Specifications & Dimensions

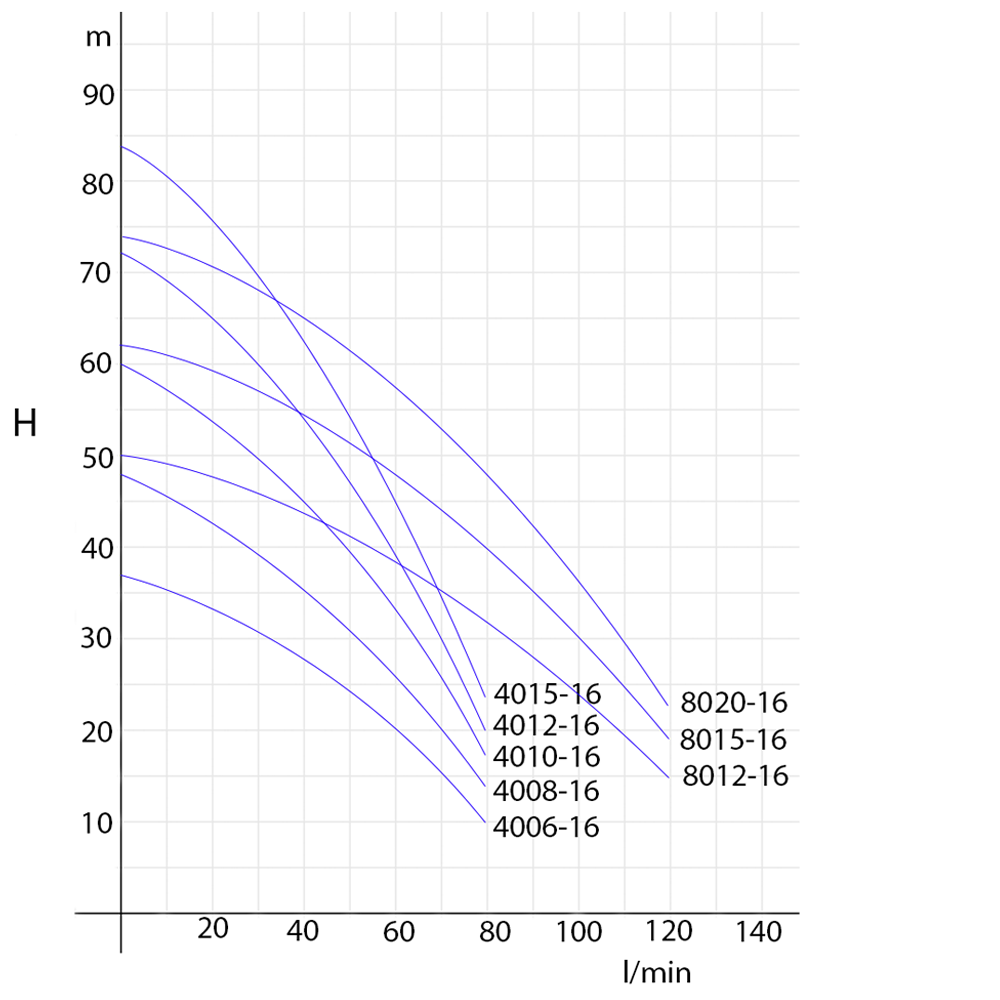

Specification

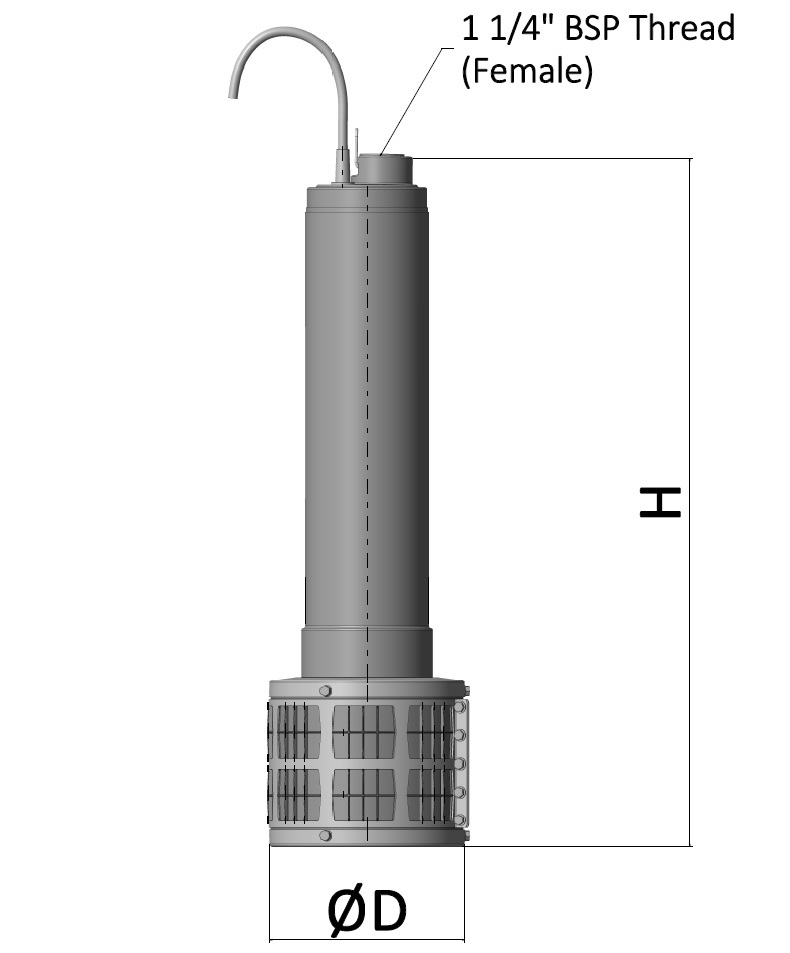

Dimensions
Prices & ordering
- All Models
- 4006
- 4008
- 4010
- 4012
- 4015
- 8012
- 8015
- 8020
Similar Products
Omnia Filterpumps™
Rotorflush Omnia Filterpumps™. Submersible pumps with built-in pump suction self-cleaning filters. Single phase low head filter pumps - up to 220 litres a minute, 70 US GPM. Ideal for sampling and small open loop heat pump systems.
- Maximum Output 220 L/ Min, 45 US GPM
- Maximum Head 11 m, 25 ft
Price from: £2,260
Nauti Filterpumps™
Rotorflush Nauti Filterpumps™. High-head submersible filter pumps with built-in self-cleaning filters on the suction intake. They have a maximum output of 220 litres a minute, and can pump up to 10 bar. Pumping and filtration are combined. All stainless steel construction.
- Maximum Output 220 L/Min
- Maximum Head 103 m
Price from: £2,915
General Information About Idrogo Filterpumps™
Idrogo submersible filter pumps are general purpose submersible pumps with a built-in self-cleaning filter on the pump suction. They can screen dirty water as they pump - the self-cleaning intake protects against blocking.
Idrogo Filterpumps™ are medium – high head, multistage pumps, ideal for domestic and light industrial applications.
Here are some typical uses of Idrogo Filterpumps™:
- Irrigation and dirty water systems
- Domestic Heat pumps
- Screening process water for re-use
Idrogo Filterpumps™ can be fitted with:
Nylon Mesh inserts
The filter mesh is made up of replaceable bias-cut nylon mesh, offering a very clean filtration, ideal for sampling. The inserts are inexpensive and easy to replace.
Available in 60 microns, 115 microns or 300 microns.
316 stainless Sintered Mesh
A robust screen that can be easily cleaned with a pressure washer. Ideal for heat pumps and other application with small tolerances.
Available in 50 micron, 100 micron and 315 micron.

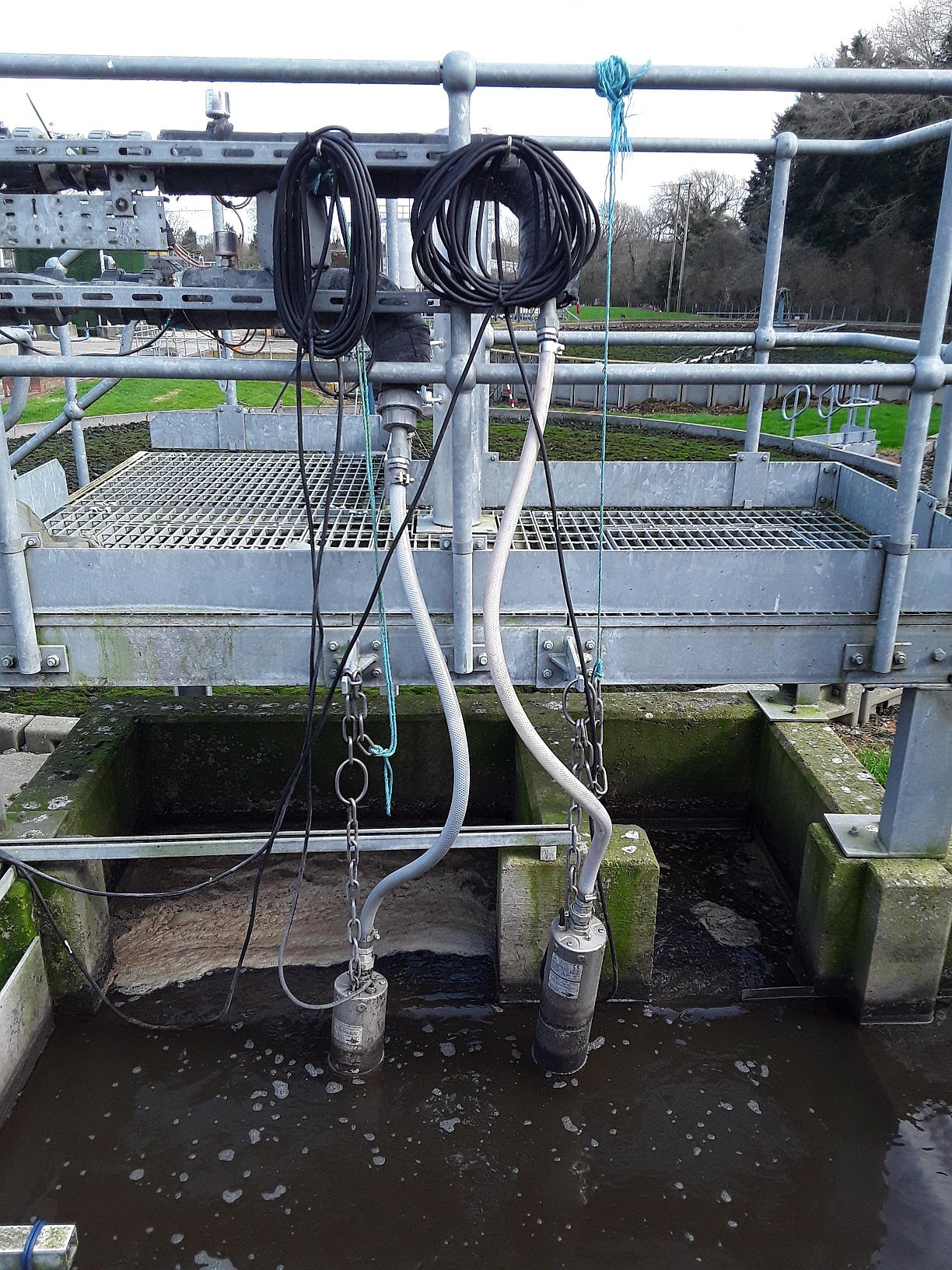

Idrogo Filterpumps™s are ideal for screening and pumping raw water for irrigation and industry, small open loop water source heat pump installations, screening industrial process water and more. For best performance, make sure that there is good clearance around the filter pump mesh so that back-washed debris can disperse, and that the filter pump is above any silt or sludge that may accumulate.
The smallest weigh in at 15 kgs, the largest at 18 kgs. Idrogo Filterpumps™ can be suspended in tanks, sumps or ponds. They can be suspended from floats or buoys, or raised and lowered on a guide-rail system.
Rotorflush Filters Ltd are happy to advise and comment on siting and installation.
Although they are self-cleaning all of our products will require a manual clean every once in a while.
The nylon mesh inserts are easily replaced and stainless mesh can be cleaned with a pressure washer.
How often will depend on your mesh size and what you are filtering.
As a minimum we recommend the following:
- Mesh up to 115 micron should be cleaned or replaced every 1000 hours of use
- Mesh up to 315 micron should be cleaned or replaced every 5000 hours of use
Full maintenance guidelines can be found in the instruction manual available from the download link above.
All our products are guaranteed for a year. However, as a condition of our guarantee, and to protect against dry-running, we recommend the use of a starter panel or control panel capable of cos phi load monitoring when running three-phase filter pumps.
Full details in our Terms and Conditions below.
What is the difference between a Rotorflush Filterpump™ and a filter pump?
A filter pump is a pump with a filter on the intake; a Rotorflush Filterpump™ is our unique, award-winning submersible pump with a built-in self-cleaning filter on the pump intake that keeps the intake filter clear and protects the pump from blocking and clogging.
Why Rotorflush?

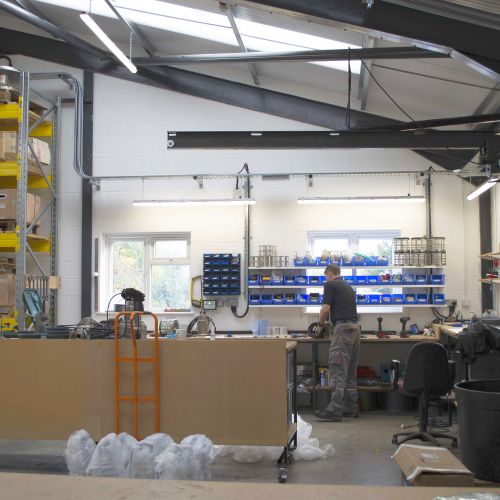

Designed & Manufactured in the UK
